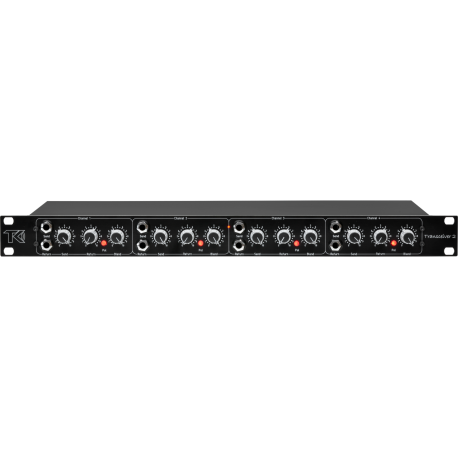

TK AUDIO Transceiver 2

A word from the manufacturer:

The Transceiver is a four-channel insertion station.

Its main function is to convert balanced signals into unbalanced signals and vice versa without losing signal quality. Each channel has a send level, a return gain control, a return polarity switch and a mix control.

With the new mix function added, you can choose how much of the inserted effect you want to mix. The Transceiver 2 is a transformerless balanced design for optimum signal handling, flat frequency response and low harmonic distortion + noise. The balanced output has plenty of drive capacity to drive input transformers, and the unbalanced output also has plenty of drive capacity.


    Insert your unbalanced equipment such as guitar pedals and old echo effects into your DAW or console via Transceiver 2.

    Active DI box with up to +20dB gain. B

    A re-amplification tool.

    A universal on-stage insert station. Connect balanced equipment on stage between your instrument and the amp.

    Mixing function for inserts.

    All controls are graduated for easy recall.

Specifications
Maximum balanced input: +27 dBu
Maximum unbalanced send level: +21 dBu
Maximum return input level: +21 dB
Return gain: 0 to 20 dB
Return input impedance: 1 Mohm
Maximum balanced output: +27 dBu
Transceiver release history
Transceiver: Released in December 2012
Transceiver 2: Released in October 2022


Features
Send: TRS jack
Send level: 0 to full (in 41 steps)
Return: TRS jack Jack TRS
Return gain : From 0 to 20 dB (in 41 steps)
Polarity: Inverts the polarity of the return signal
Mix control: Dry to wet (in 41 steps)
Regulated internal power supply with toroidal transformer
Selectable between 115 and 230V
Power consumption: 12VA
