Our flagship model, designed for Audiophiles who want to extract all the detail and dynamics out of their music on high end hi-fi systems.
In stock, delivery in 3-5 days
Warning: Last items in stock!
Availability date:
New Custom Motherboard with reduced EMI
Innovative Triple-Linear Power Supply with ultra-low
noise regulators and premium Mundorf Capacitors
Asymmetrical isolation feet inspired by the ZENith SE
SSD Storage with newly improved vibration and EMI treatment
Medical-Grade Mains Filter
Dual Ethernet Ports for LAN and Streamer
with dedicated isolation transformers
8GB RAM with 4GB In-Memory playback
Ultra-low Noise USB Audio Output
New Generation Quad-core Intel CP
The ZEN is a true HiFi component with a number of improvements on top of the ones offered by the ZENmini.
Linear Power Supply
The ZEN uses our linear power supply design with ultra-low noise regulators (40 uV), specialised audio capacitors (Nichicon MUSE) and medical-grade mains filter to ensure audio transparency and realism.
Ultra-low Noise Streamer Output
Dual-ethernet ports with isolation transformers on Ethernet ports significantly improve sound quality on streamers when compared to a direct router connection.
Reduced Vibration
Vibration kills good sound quality so we have added significant anti-vibration treatment to chassis and electronic components.
In-Memory Playback
With 2GB dedicated memory, the ZEN loads music directly to memory for playback so that it doesn’t need to engage the hard drive during playback, improving sound quality.
Audio Outputs |
|
Digital Output | USB 2.0 supporting USB Audio Class 2, DoP, Native DSD and MQA |
Dedicated Ethernet Streamer Port | |
Connectivity |
|
Ethernet | 2 x rear panel RJ45 – Bridged Gigabit Ethernet |
USB | 1x USB 2.0 (DAC), 1x USB 3.0 (Backup) |
Formats |
|
CD Formats | Red Book |
Disc Compatibility | CD, CD-R, CD-RW |
Audio format for stored CDs | FLAC (zero compression), WAV |
Audio Formats Supported for streaming and playing | WAV, AIFF, FLAC, ALAC, AAC, MP3, MQA (with supported DACs) |
Sample Rates |
|
Sample Rates | 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4KHz. 192kHz, 352.8KHz, 384KHz , DSD64, DSD128, Native DSD up to DSD512 on selected DACs |
Bit Depths | 16bit, 24bit, 32bit |
User Control Interfaces |
|
Web Interface | Web Browsers from iOS, Android (4.0 and up) or up-to-date Windows and OS X browsers |
Mobile | App for iPhone/iPad, Android and Windows 10 |
Hardware |
|
CD/DVD drive | TEAC Slot-loading drive |
Hard Drive | 1TB SSD with Vibration and EMI treatment |
CPU | Intel Quad Core N4200 |
Memory | 8GB DDR3 Low-Voltage RAM (4GB Dedicated for RAM Playback) |
Streaming And Cd Storage |
|
UPnP/DLNA | Integrated UPnP Server |
Streaming Services | Qobuz, Spotify Connect, Tidal, Internet Radio |
Roon Compatibility | Roon Core and Roon Bridge |
Average CD Storage Time | 5 minutes |
CD Metadata | FreeDB, MusicBrainz, Discogs, GD3 |
Compatible Music Systems | Sonos Multi-room Wireless Music System |
DLNA/UPnP compatible devices | |
USB DACs complying to USB Audio Class 2 | |
USB DACs supporting DSD over DoP protocol | |
Selected USB DACs supporting Native DSD | |
Requirements |
|
Network | Internet connection to access album metadata when storing CDs, Internet Radio, Streaming Services and software updates |
Network router with at least one available ethernet port | |
Premium subscription required for some streaming services such as Spotify, Qobuz and Tidal | |
Recommended App (USB Connection Only) | iPeng 9 (iOS), OrangeSqueeze (Android), Squeeze Control (Windows 10) |
Power |
|
Mains Supply | 230V AC / 115V AC - Internal Dual-Linear Power Supply |
Power Consumption | 12W when idle, 15W peak |
Physical |
|
Dimensions | 70 x 420 x 320 mm (H x W x D) |
Weight | 9 Kg |

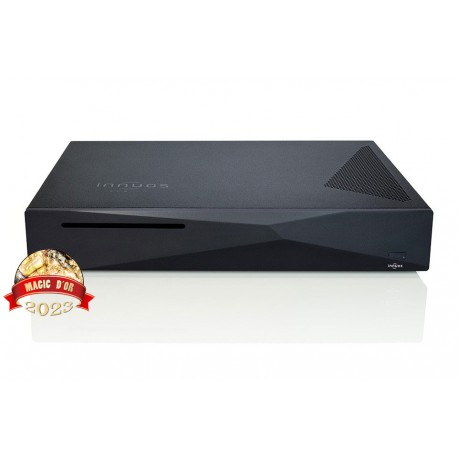

In the box | Innuos ZENith Mk3 1TB Music Server |
Mains Cable | |
2m Ethernet Cable | |
Getting Started leaflet |
