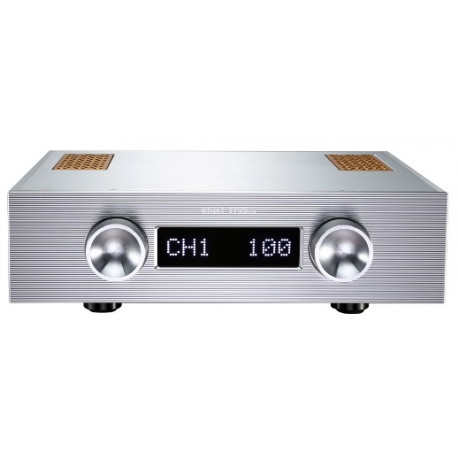

KINKI EX-M1+

The EX-M1+ is designed based on the award-winning EX-M1.

- Advanced microprocessor-controlled,
- relay-based R-2R steps attenuator,
- dual 300VA UK made AMPLIMO transformers,
- quasi monoblocks amplifier stage with EXICON MOSFET lateral, known for its ultra-fast and dynamic sonic response where the EX-M1+ benefited with. <>PREAMP OUT, HT BYPASS

Preamp Output and HT Bypass.

The Preamp Output can be enabled/disabled by the completely redesigned Remote Control Unit.

It allows you to use the EX-M1+ as a preamp only, or integrated amp where the preamp output can be connected to the subwoofer or to our monoblocks EX-B7 to biamp the loudspeakers.

-------

Preamp Matching

Please consider our award winning EX-P7 to match with the EX-M1+. Our amplifiers are Direct-DC-Coupled without any capacitors in the signal path. This yields less colouration, high resolution, fast, and transparent sound quality.

Should you wish to use other preamp make, please be informed that we do not recommend the use of DC-Coupled OTL tube-based preamp. The DC-offset of such preamp may fluctuate as the tube/valve ages and deteriorates.

You may experience slight pops/clicks noise to the loudspeakers, it's likely caused by the DC-offset in the preamp. Some preamp/source may have a small DC-offset output, in general, it's recommended to keep it <= 50mVDC.

The DC-offset is harmful to the loudspeakers. Our amplifiers are equipped with a Speakers Protection circuit at the output stage. The protection circuit triggers to cut off the amplifier output (to protect the loudspeakers) when it detects a 0.8VDC at the speaker output.

---------

HT Bypass Input.

A single press on the Remote Control Unit button enables the HT Bypass Input. The preamp stage is bypassed, EX-M1+ functions as a power amp.

WHAT'S MORE?

The display can now be dimmable, off completely, literally.

We have also improved the internal wiring with pure OCC copper and overly well-made gold plated connector for the line stage input signal and transformer primary stage.

SOUND CHARACTERISTIC

Neutrality and musicality were the goals to achieve. Rich tonal quality, vivid sound imaging, details, high resolution and dynamic. The choice of the components, design, and tuning does just that.

Parameters

  - Frequency Response: 10-150kHz (±3dB)
  - THDN: 0.0232%; 0.006% (A-Weighted)
  - S/N Ratio: >103dB
  - Output Power: 215W (8Ω), Both channel driven
  - Damping Factor: 2000
  - Gain: Normal Gain 26 dB, Lowered Gain Switch 22 dB
  - Max Output Voltage: 55VAC
  - AC Power: 110/240VAC, 50/60Hz (Factory configure)

Input / Output

  - Input Sensitivity: 2.25Vrms - 3.6Vrms
  - Input Impedance: 50kΩ
  - Input Connector: RCA x 3, XLR x 1, HT BYPASS x 1
  - Output: Speaker Binding Post 4mm L/R Channel
  - Output: Preamp Output x 1

Dimension & Weight

  - Dimension: 430W x 125H x 370D
  - Weight: 25KG
