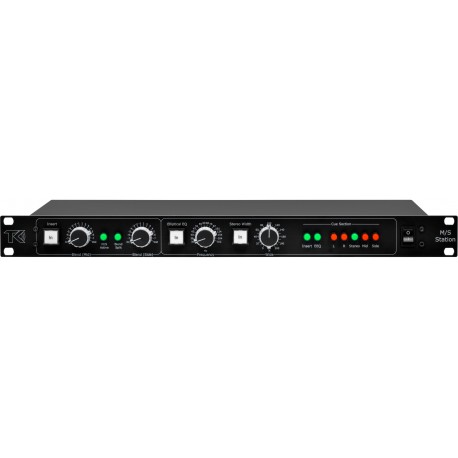

It’s designed to cover all the needs of every producer/engineer who wants to maximize their use of mid-side processing for enhanced stereo width; tight, focused mono-bass, and more.
Warning: Last items in stock!
Availability date:
Parallel insert with M/S function:
With the insert section you can insert an external processor like an eq, compressor, distortion unit etc, and then dial in a mix between the processed signal (wet) and the unprocessed signal (dry). For maximum precision the blend control has 16 steps from dry to wet. If you activate the M/S function your signal will be coded into mid (L+R) and side (L-R). The mid signal normally contains all the center info such as bass, kick drum, lead vocal etc and the side signal contains all the panned parts of the signal. In M/S you can process the center signal and side signal separately with different types of processors. With the blend split function you get separate blend controls for the mid and side signal. In M/S mode the blend function takes place before the signal is decoded back to left/right. This section can be used with it’s own balanced inputs and outputs.
Elliptical Equalizer:
With the elliptical EQ all frequencies below a selected frequency will be made to mono. This function can make your low end more focused. It’s an old technique used when mastering for vinyl. Too much low end in the side channel (vertical) can make the needle bounce slightly and cause distortion. By using a 12dB high pass filter in the side channel you set the frequency under which the signal will be processed as mono. As a HPF introduces phase shift to the signal, a phase correction is added to the mid channel keeping channel separation as good as possible. The EEQ has 16 frequencies from 36Hz to 302Hz. With the EEQ cue function you can monitor the signals that are mixed between the channels.
Stereo width control:
By adjusting the amount of side information in the stereo mix, the width can be adjusted incrementally from mono to extra wide. With this control you can fine adjust the stereo image after you have used the M/S insert.
Max input and output +26dBu
Dynamic range 119dB
Frequency response: 20Hz – 80kHz +/-0,1dB
Insert section
THD+N Dry 0,00022% @ +4dBu / 0,00015% @ +20dBu
THD+N Wet 0,00025% @ +4dBu / 0,00015% @ +20dBu
THD+N M/S Wet 0,0004% @ +4dBu / 0,0004% @ +20dBu
S/N Dry @ +4dBu 103dB
S/N Wet @ +4dBu 102dB
S/N M/S Wet @ +4dBu 97dB
Elliptical EQ section
THD+N 0,0004% @ +4dBu / 0,0004% @ +20dBu
S/N 98dB
Crosstalk Better than 70dB
Width section
THD+N 0,0003% @ +4dBu / 0,0003% @ +20dBu
S/N 98dB
All sections active
Dynamic range 115,5dB
THD+N 0,0005%
Power consumption: 15VA
Voltage: 115v or 230v selected via an internal volt selector switch.
Inspired by circuits designed by Wayne Kirkwood (used by permission)
Parallel insert
Insert In/Out
Stepped blend controls (16 steps)
M/S function
Blend split for separate blends for Mid and Side
Elliptical EQ
EEQ In/Out
Frequencies: 36Hz,38Hz, 40Hz, 43Hz, 47Hz, 51Hz, 55Hz, 60Hz, 68Hz, 76Hz, 87Hz, 101Hz, 124Hz, 154Hz,204Hz, 302Hz
Width control
Width In/out
Wide from mono to 200% in 41 steps (detented potentiometer)
Cue Section
Left, Right, Stereo, Mid, Side, Insert cue, EEQ cue
Specifications and components may be changed or updated without further notice.
