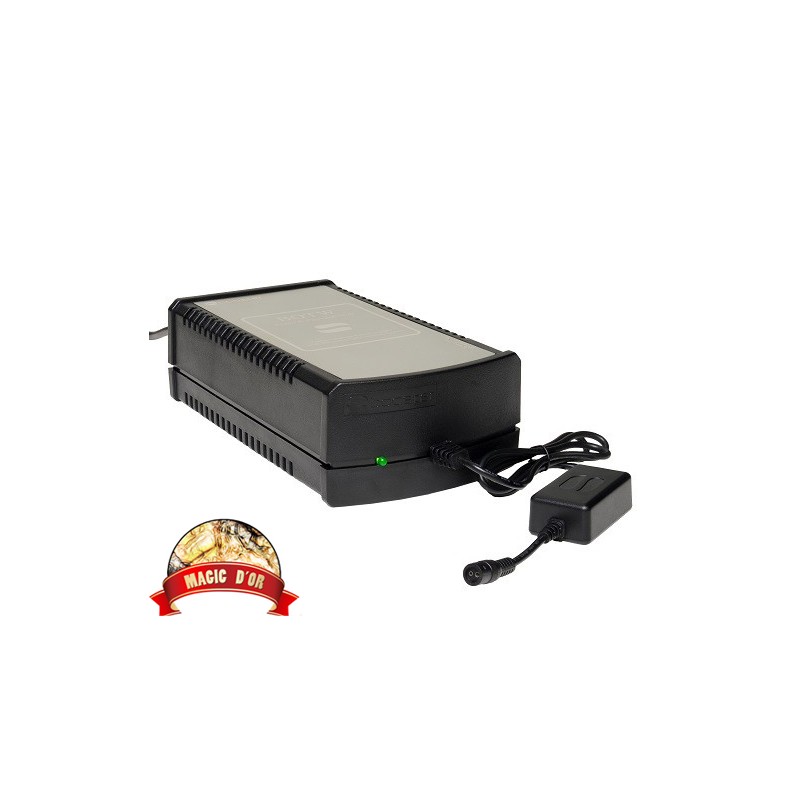

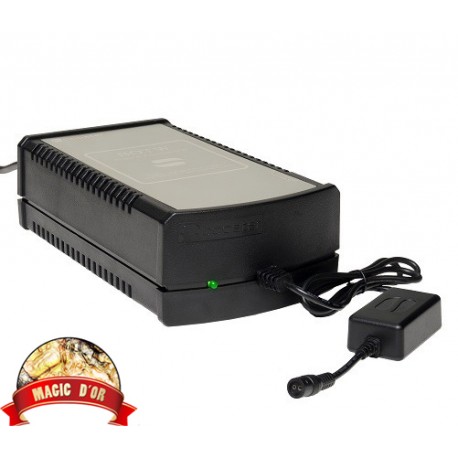

With the BOTW P&P ECO audio upgrade the purification of the current starts immediately there where the polluted current enters the upgrade. The dual stage mains filter and earth line choke clean the current from high frequency pollution before the current reaches the transformer. The transformer is a custom-made audio grade transformer with electrostatic shielding. The transformer of the MKII power supply is also magnectic shielded.

The electronic design is innovative: it gets 50% more output out of the used electronics and consumes even up to 35% less energy than a conventional design. The BOTW P&P ECO audio upgrade concept is so efficient that it consumes only a bit more energy than the standard supplied high efficient, but also highly polluting switch mode adapter. It costs you annually a couple of euro extra on your energy bill for a priceless sound experience...

Finally, at the end of the DC cable the unique split current system has been placed. The power supply of the BOTW P&P ECO audio upgrade provides the split current system with continous powerful and clean power, so the electronics can do their job profoundly, which is to buffer the power, so that the power supply becomes very fast, and to filter one last time the voltage and current before they enter the audio device.

This unique upgrade power supply with its large headroom delivers at all times sufficient clean power to the audio device to ensure a stable and continuous performance of the internal processes of the audio device in order to get the best performance out of the audio device.

This combination of power and precision results in “easy” music, a perfect soundstage and a natural detailed sound.

Product highlights:

• 50% more output current;

• Power saving design;

• 2 characteristics in 1 product:
  * Power for high current demanding equipment;
  * Precision for noise sensitive equipment;

• 3 selectable output voltages;

• IEC 14 power inlet for High-end mains cables;

• High performance dual stage mains filter;

• Earth line choke;

• Overvoltage protection;

• Custom made high efficient audio grade transformer;

• High quality polypropylene film capacitors;

• No-noise Sbooster split current system.

Length DC cord : 95cm

Dimension: 240*130*75mm 1.85Kg

Version 5-6V

• 5V - 3A
• 6V - 1.75A
• 6.5V - 1.6A

Version 9-10V

• 9V - 2.33A
• 10V - 1.25A
• 10.5V - 1.1A

Version 12-13V

• 12V - 3A
• 13V - 2.25A
• 13.5V - 2.1A

BOTW P&P ECO 5V – 6V MKII                     400mA Slow blow (glass type fuse)

BOTW P&P ECO 9V – 10V MKII                   400mA Slow blow (glass type fuse)

BOTW P&P ECO 12V – 13V MKII                 630mA Slow blow (glass type fuse)

BOTW P&P ECO 15V – 16V MKII                 630mA Slow blow (glass type fuse)

BOTW P&P ECO 18V – 19V MKII                 630mA Slow blow (glass type fuse)

BOTW P&P ECO 24V MKII                             630mA Slow blow (glass type fuse)

BOTW 16VAC                                                     500mA gold plated glass type fuse slow blow

BOTW 24VAC                                                     500mA gold plated glass type fuse slow blow

*    Fuse size 5 x 20mm

** The BOTW P&P ECO 5V – 6V MKII unit and BOTW P&P ECO 9V – 10V MKII units are supplied with a spare fuse in the packaging.
